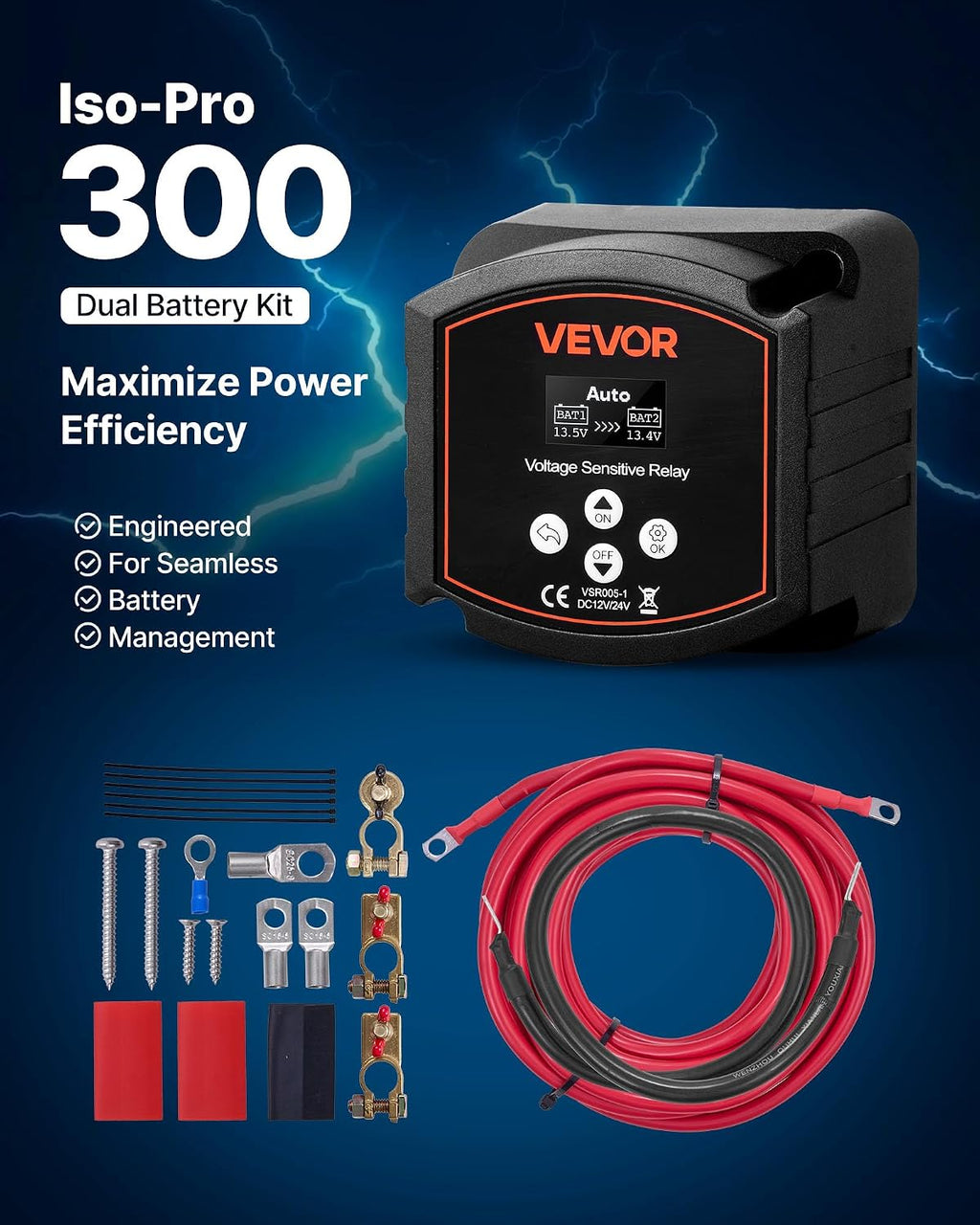

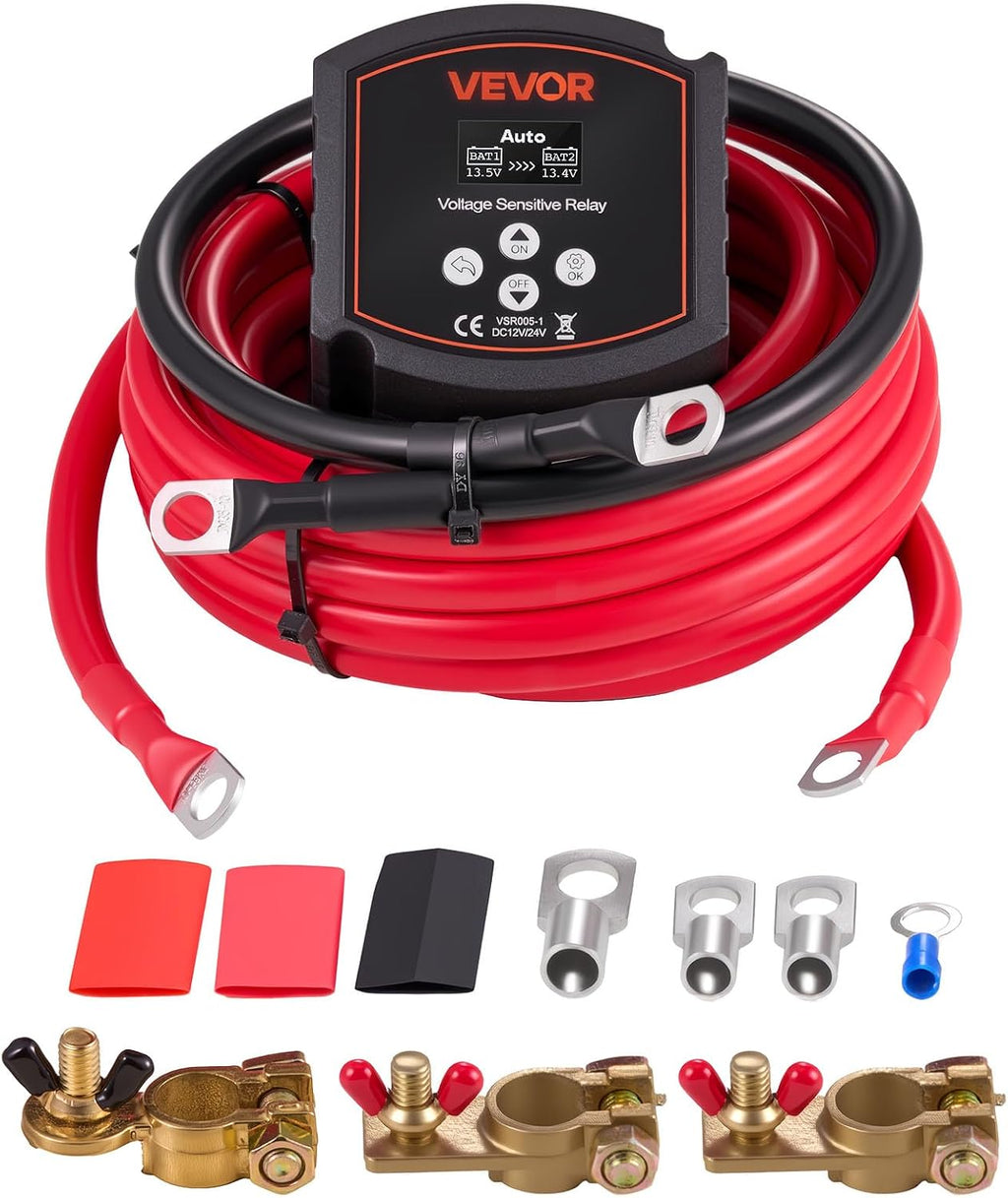

VEVOR Dual Battery Isolator Kit, 12V 300 Amp 20 ft 2AWG, Manual and Automatic VSR Voltage Sensitive Relay with Voltmeter, LCD Screen, Smart Battery Isolator, Compatible with Lithium Batteries, for UTV

Specifications
Model: JDQTJ-6M
Rating Voltage: 12V DC
Continuous Current: 140A
Intermittent Current: 160A

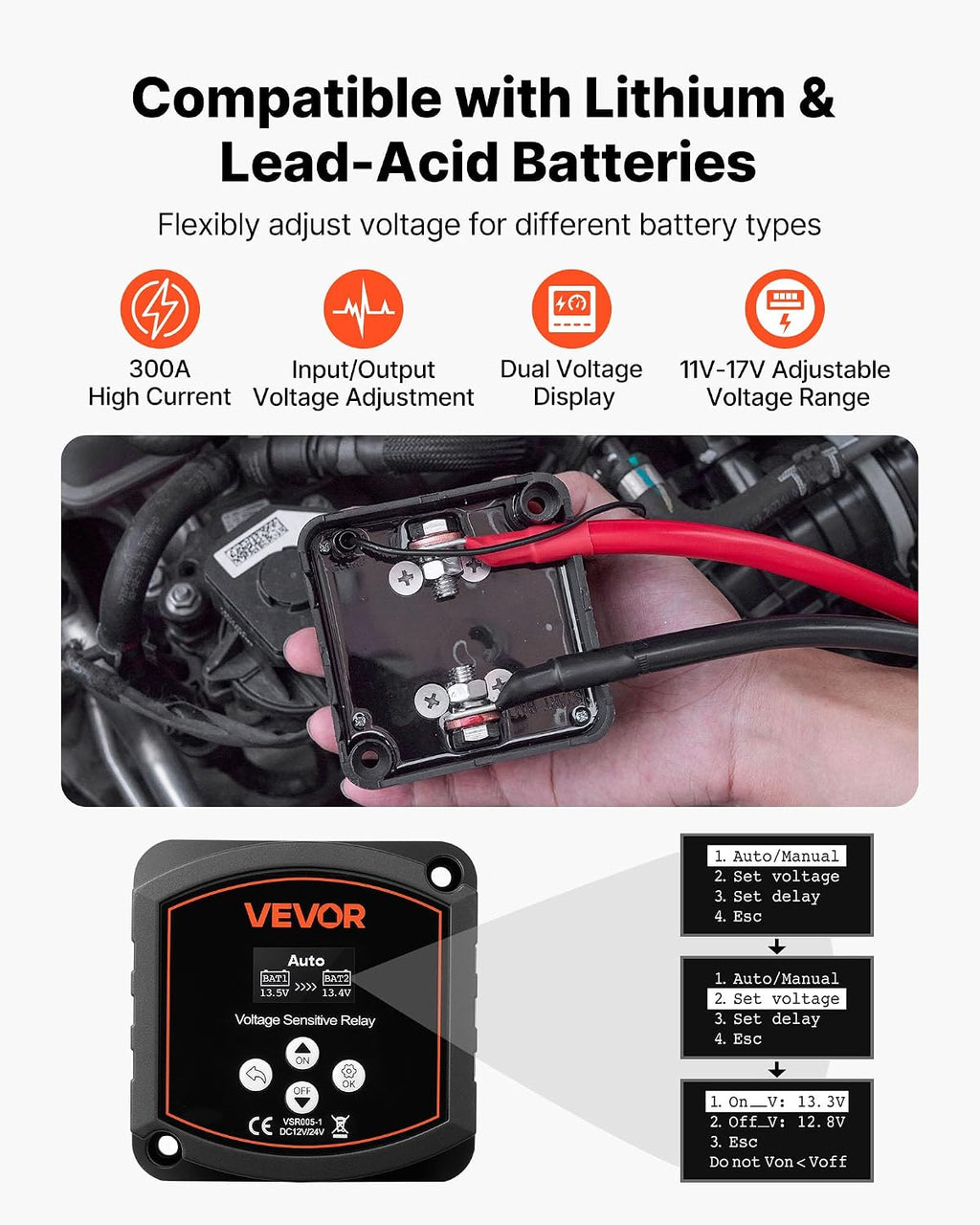

Cut-in Voltage: 13.3V
Cut-out Voltage: 12.8V

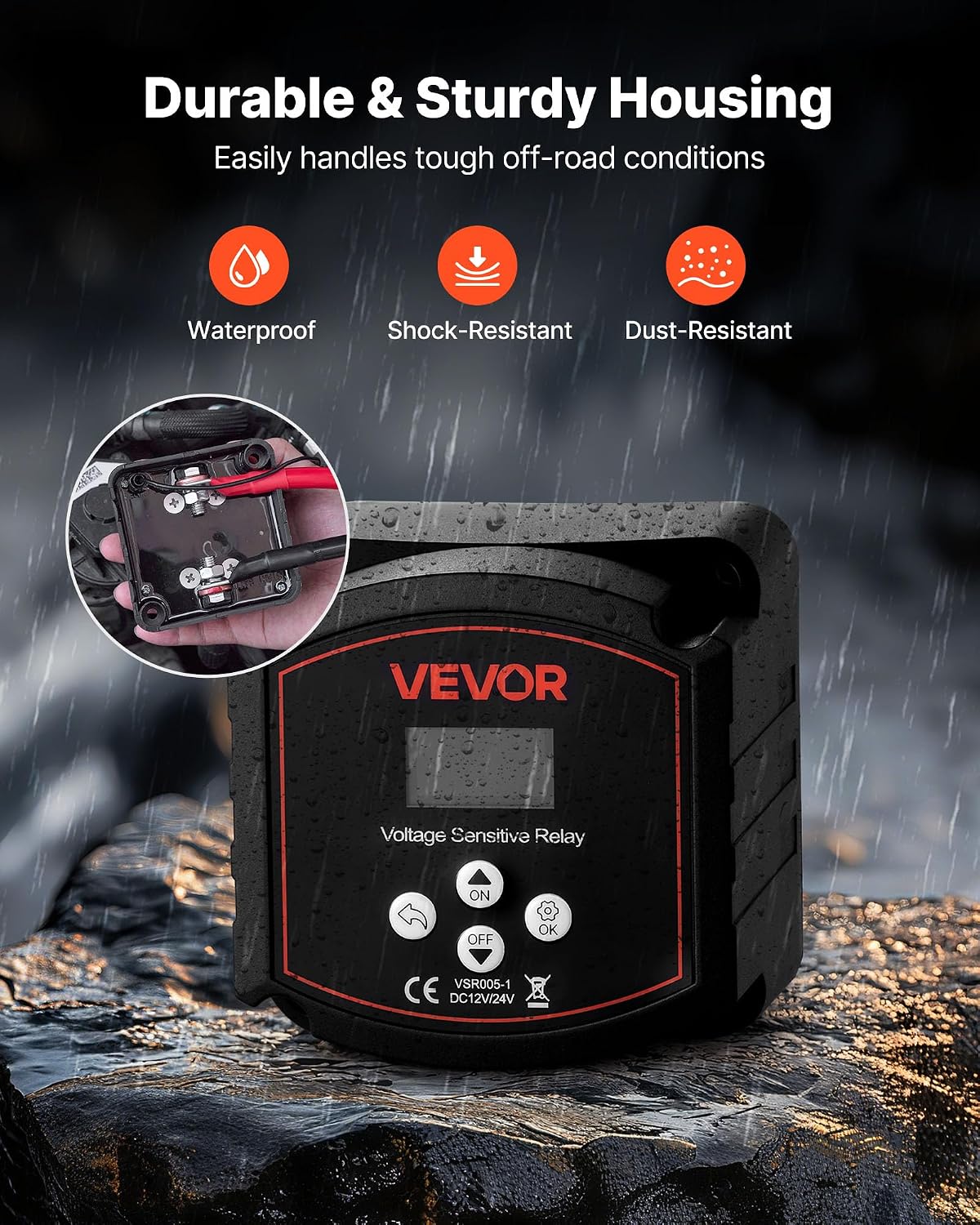

IP Rating: IP65
Material: Nylon Plastic
Current Draw-Charging: 280mA
Current Draw-Standby: 8mA
Power Studs: M6 Stainless Steel

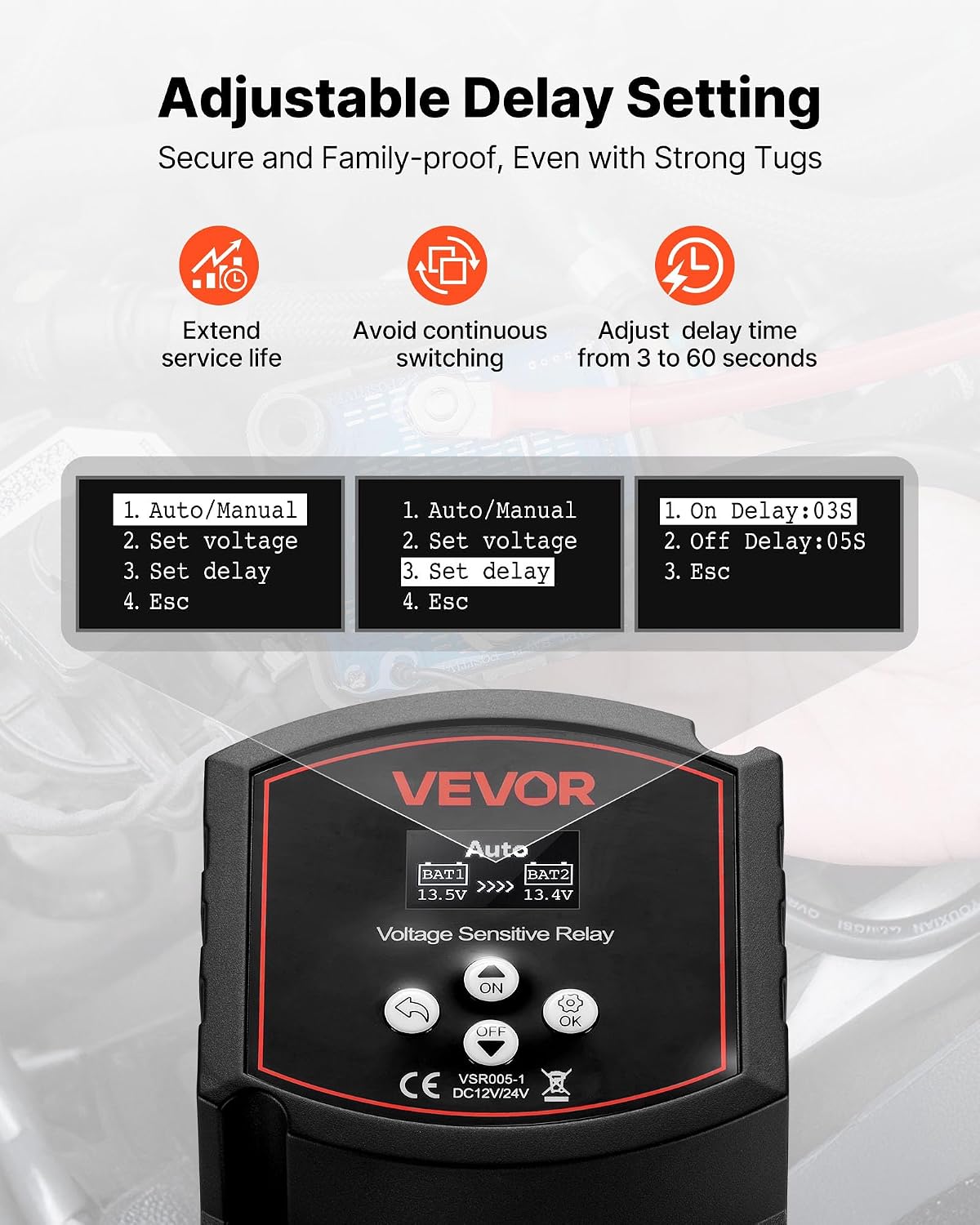

Delay Time: 5 Seconds

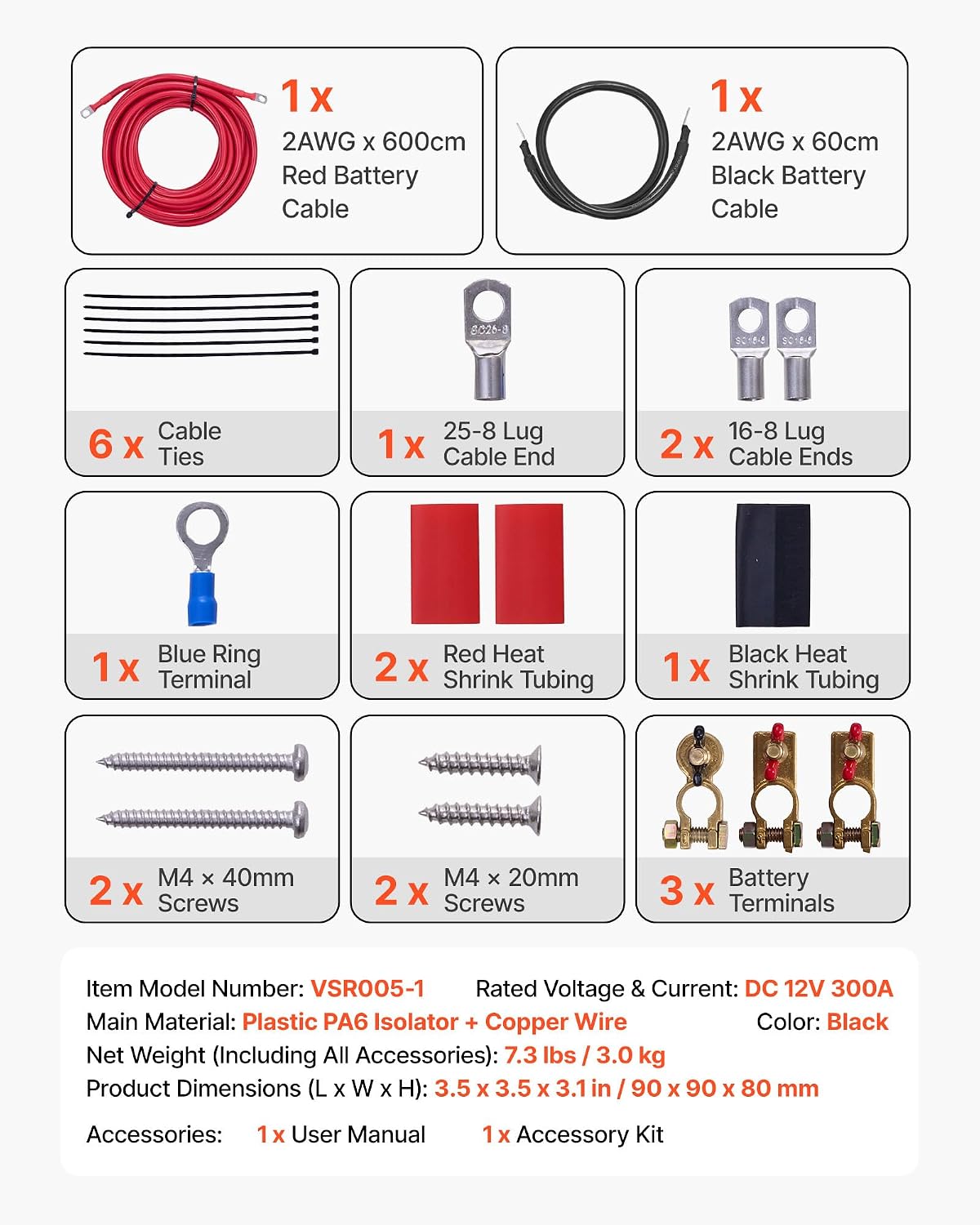

Package Content
1 x Split Charge Relay

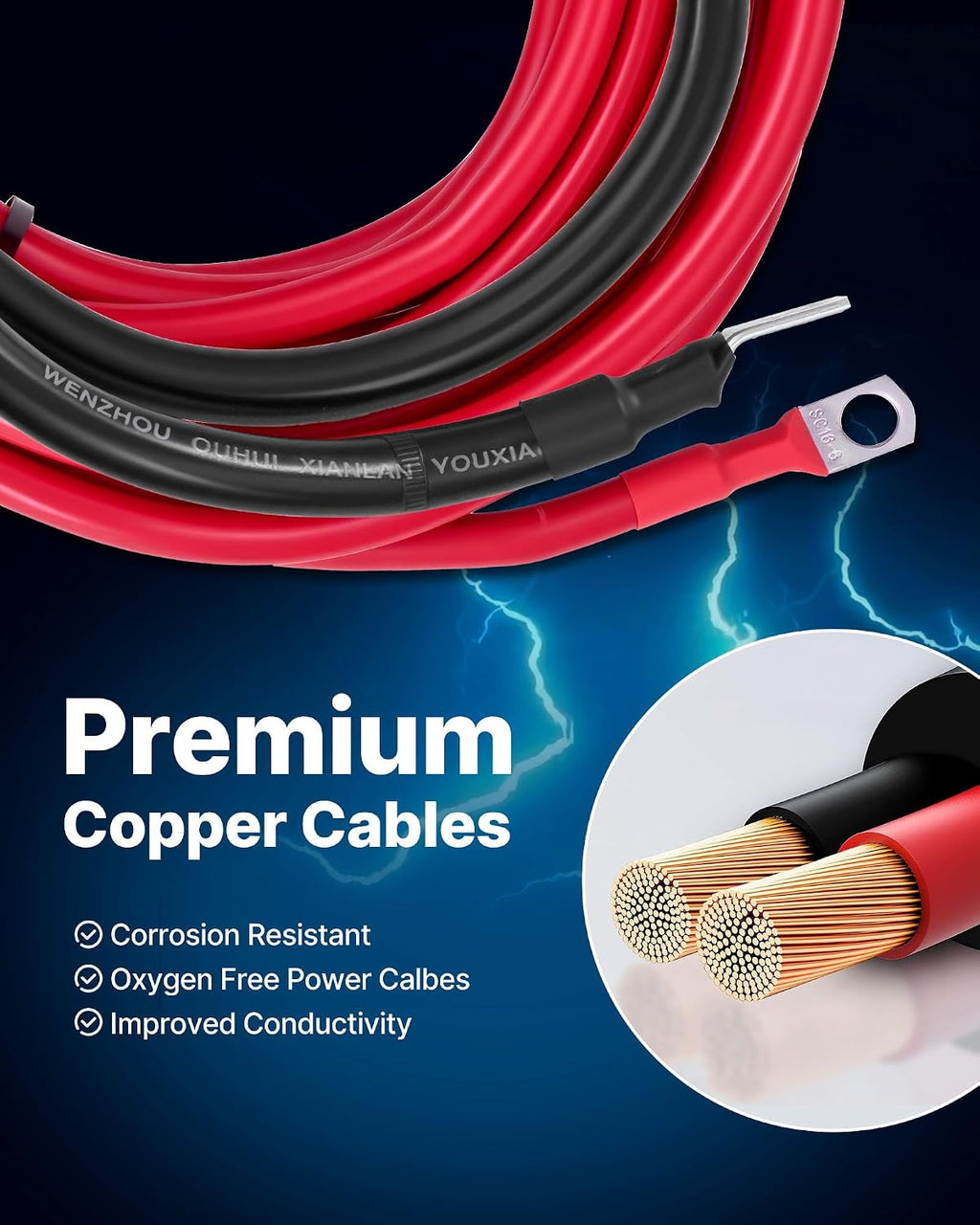

6 x 1 mtr Red Battery Cable 110A
1 x 1 mtr Black Ground Cable 110A
1 x Negative Marine Battery Terminal
1 x Positive Marine Battery Terminal
2 x Fuse Holders
3 x Lug Connector
3 x Insulated Blue Ring Terminal
15 x Cable Ties
2 x 250 mm Red 110A Cable
2 x Shrink Tube
1 x Drill Bit
1 x Black Split Conduit
1 x Set of Screws

Additional details

• Contact Material : Copper

Features & Specs

• Coil Voltage : 12 Volts (DC)
• Connector Type : Screw
• Contact Current Rating : 300 Amps
• Contact Type : 2no
• Current Rating : 300 Amps
• Minimum Switching Voltage : 12.2 Volts (DC)
• Mounting Type : Surface Mount

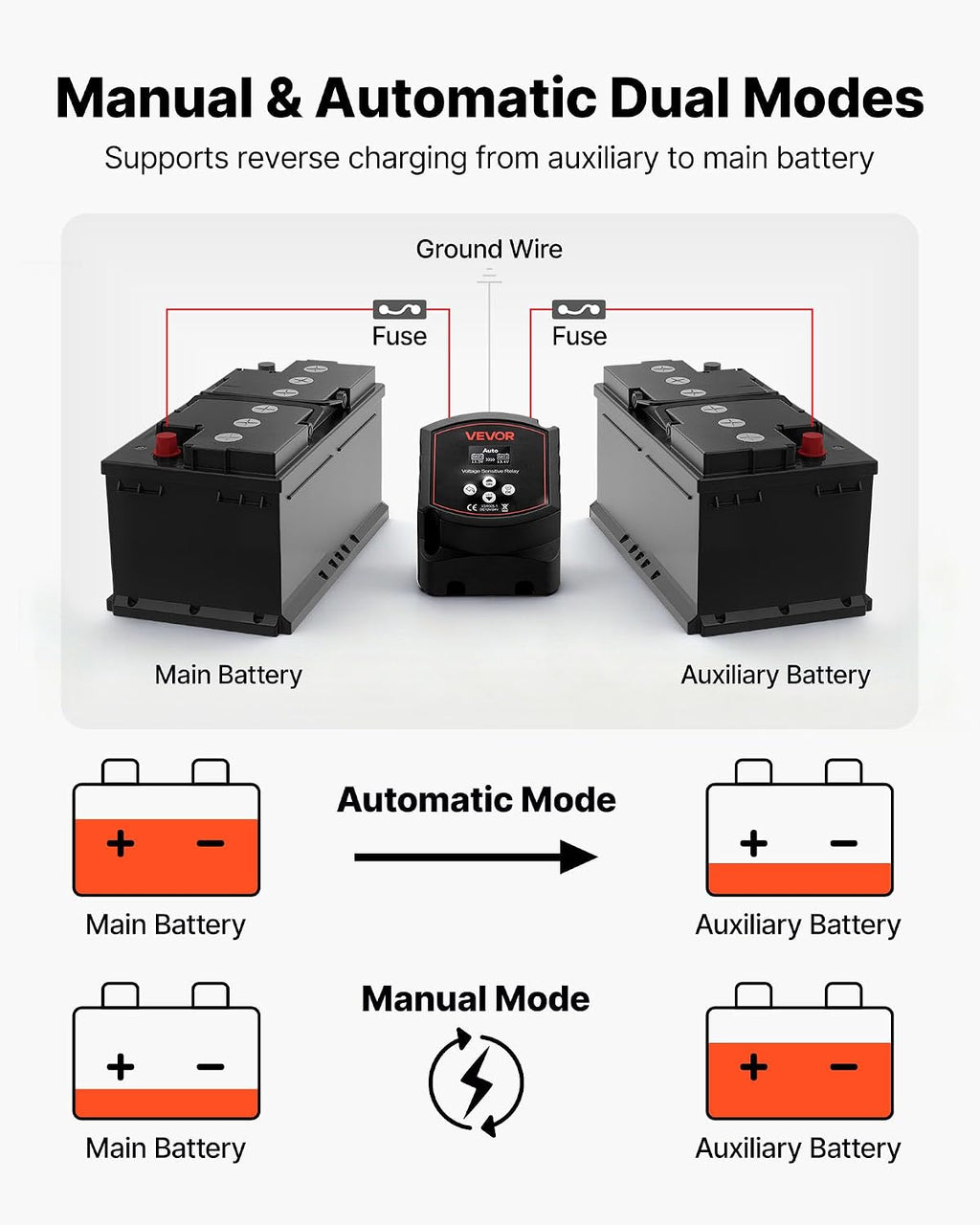

• Operation Mode : Automatic, Manual

Item details

• ASIN : B0FYF7Y8JM
• Brand Name : VEVOR
• Included Components : 1 x Dual Battery Isolator Kit
• Item Type Name : 12V 300 Amp, Manual and Automatic VSR Voltage Sensitive Relay with Voltmeter, LCD Screen, Smart Battery Isolator, Compatible with Lead-Acid Batteries, for UTV, ATV
• Item Weight : 7.3 Pounds
• Manufacturer : VEVOR
• Model : VSR005-1
• Part Number : Battery isolator,black,300A
• UPC : 197988169161
