GTC505 Engine Ignition Analyzer - Spark Diagnostics and Tachometer Readings for Marine, Motorcycle, and Automotive Mechanics by GTC, General Technologies Corp

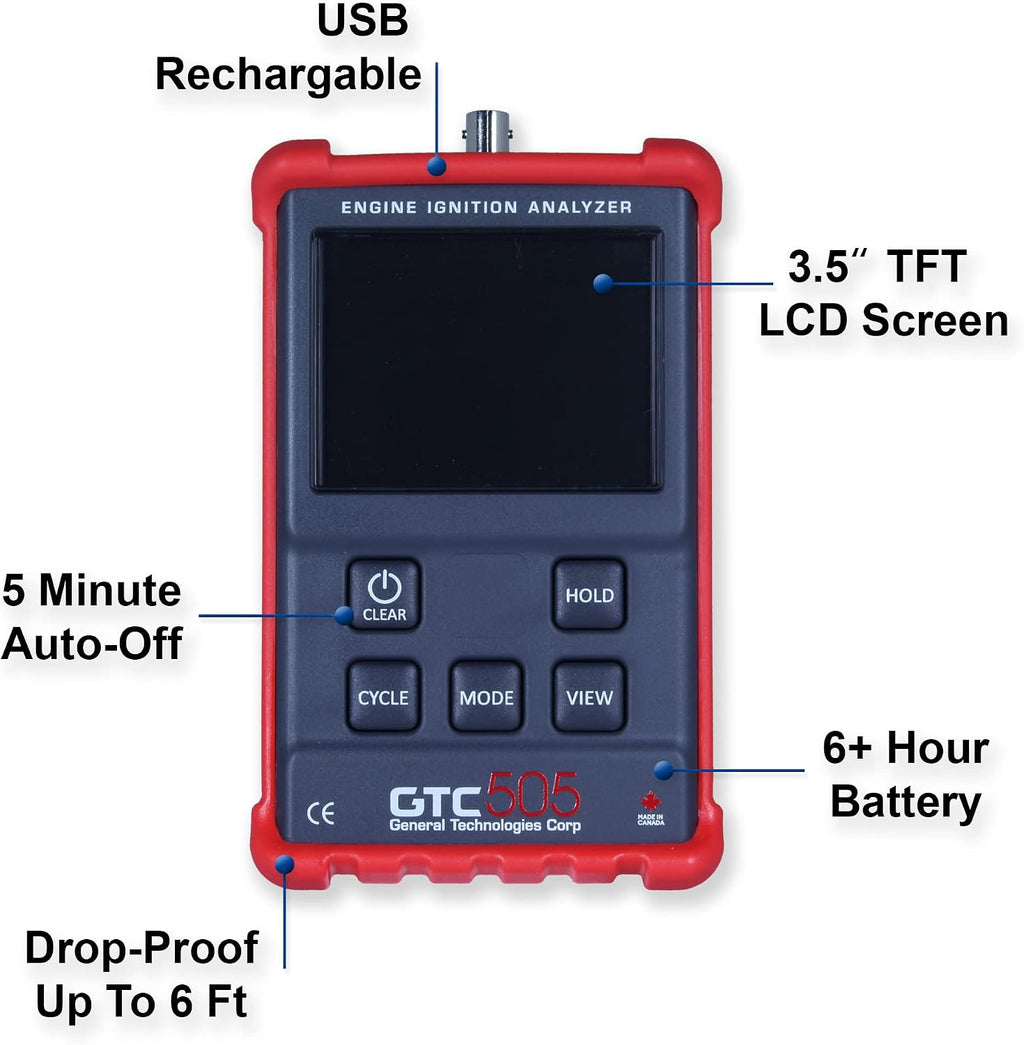

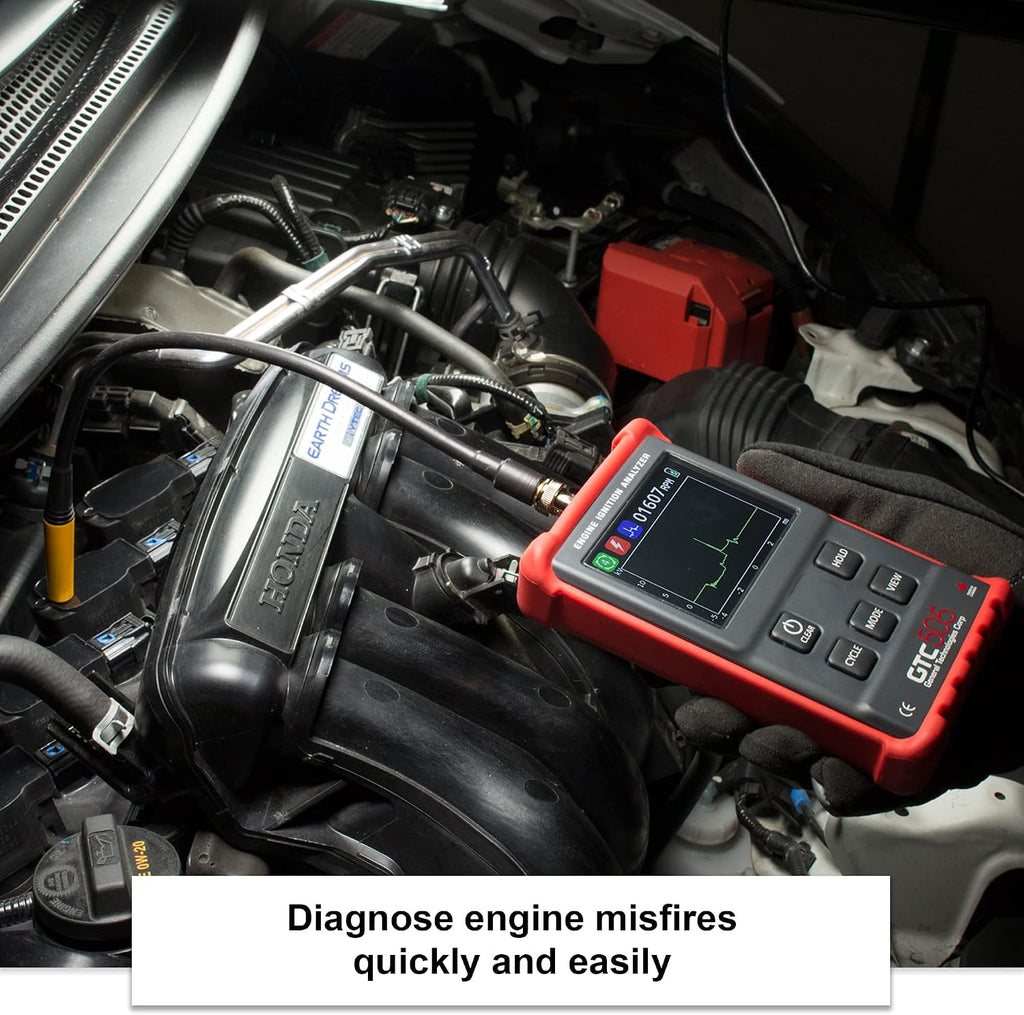

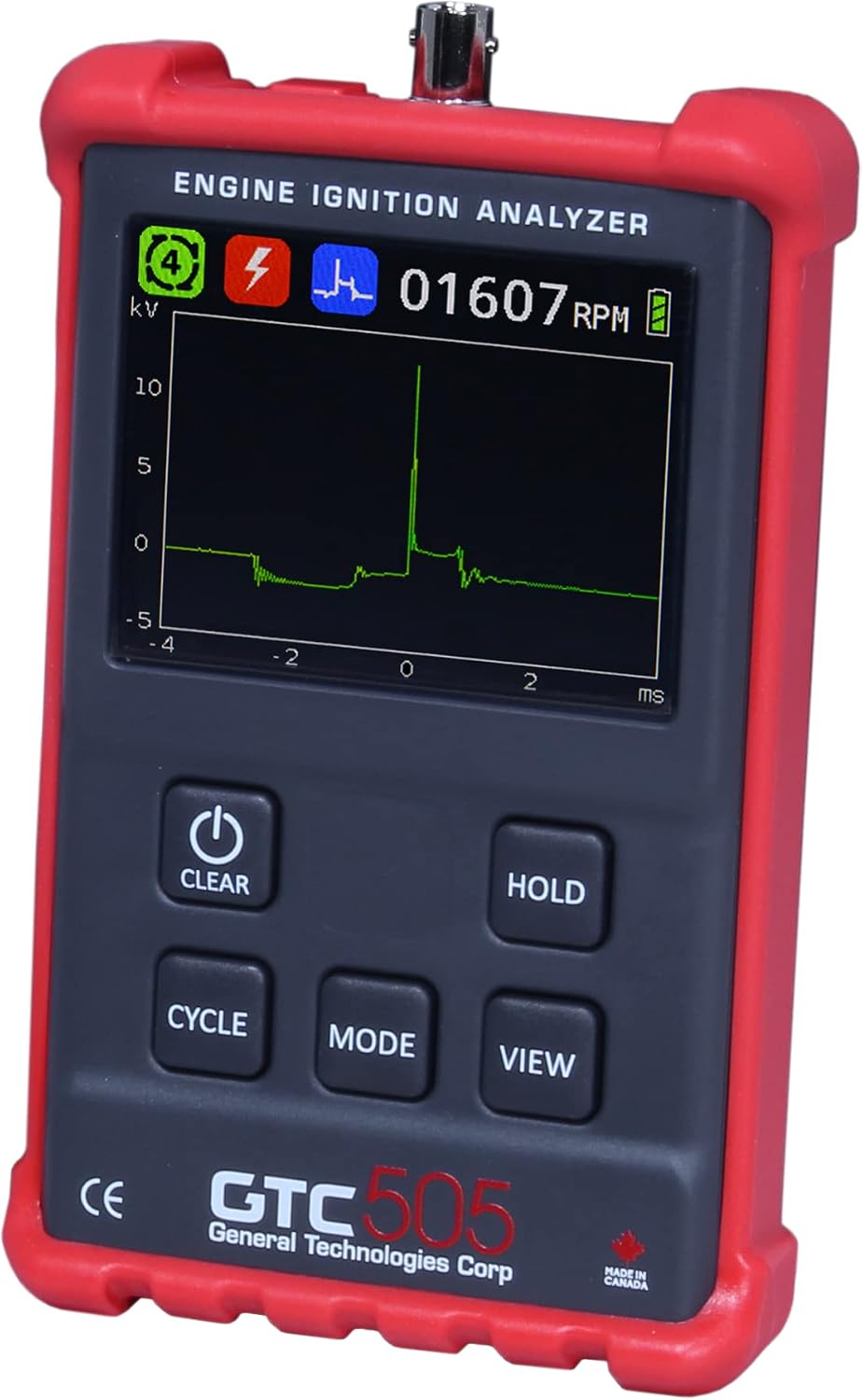

The GTC505 Engine Ignition Analyzer is a handheld instrument designed from the ground up for the diagnosis and performance measurement of all types of spark ignition systems, from conventional to the newest Coil on Plug in use. The GTC505 is capable of displaying and measuring the following in real time: secondary ignition waveform, primary coil current ramp time, dwell time, spark burn time and RPM. It also provides two innovative and unique display formats used to compare measurements between cylinders, and to look at data for hundreds of spark events over time in order to detect intermittent problems, misfires and other performance issues which are very difficult to detect using conventional scopes.

Features & Specs

• Operating System : RTOS
• Power Source : Handheld
• Screen Size : 3.5 Inches

Item details

• ASIN : B001TD5JYE
• Brand Name : GTC
• Global Trade Identification Number : 00833303000688

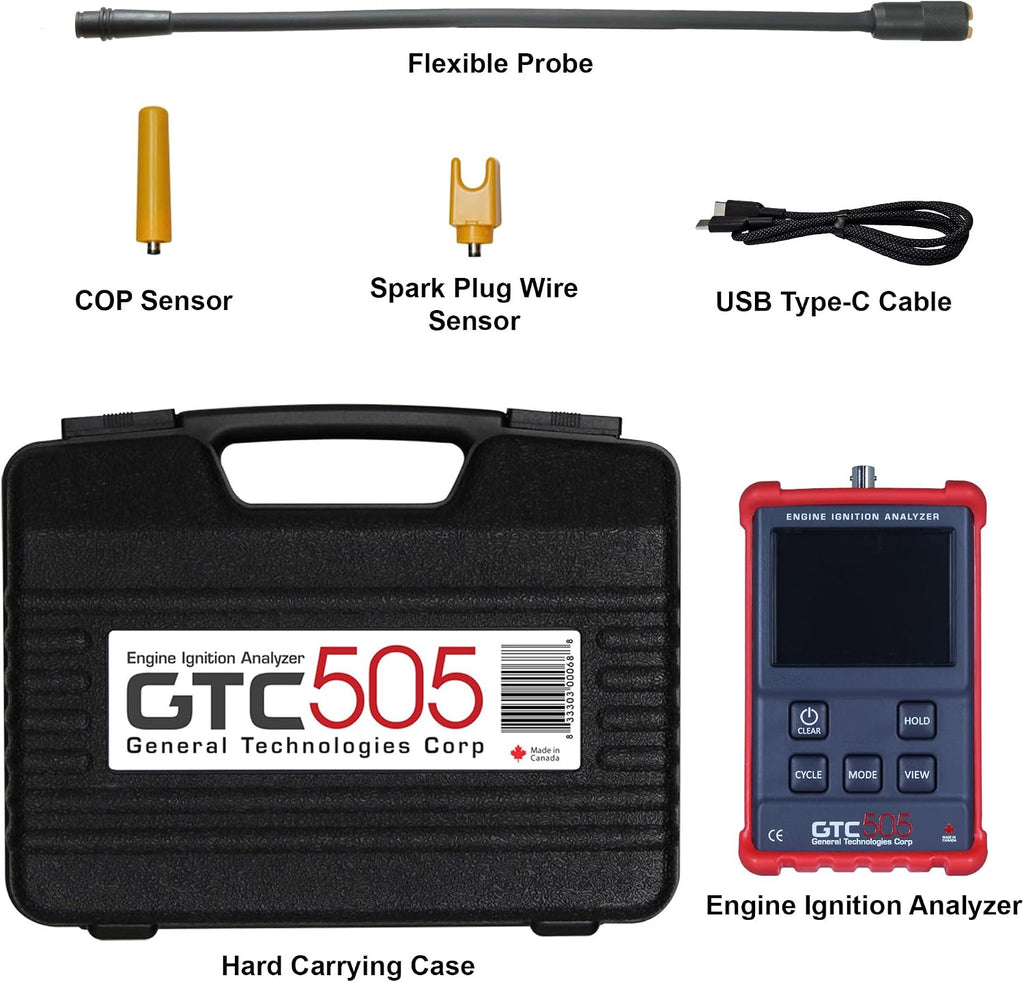

• Included Components : GTC505, flexible probe, coil on plug pickup, spark plug wire pickup, USB micro cable, AC adapter, user manual
• Item Type Name : GTC505 Engine Ignition Analyzer
• Item Weight : 0.01 Ounces
• Manufacturer : GTC
• Manufacturer Part Number : GTC505
• Manufacturer Warranty Description : 1-year parts and labor warranty, please see manual or manufacturer website for details, instructions, and exclusions.
• Model Number : GTC505
• UPC : 833303000688
