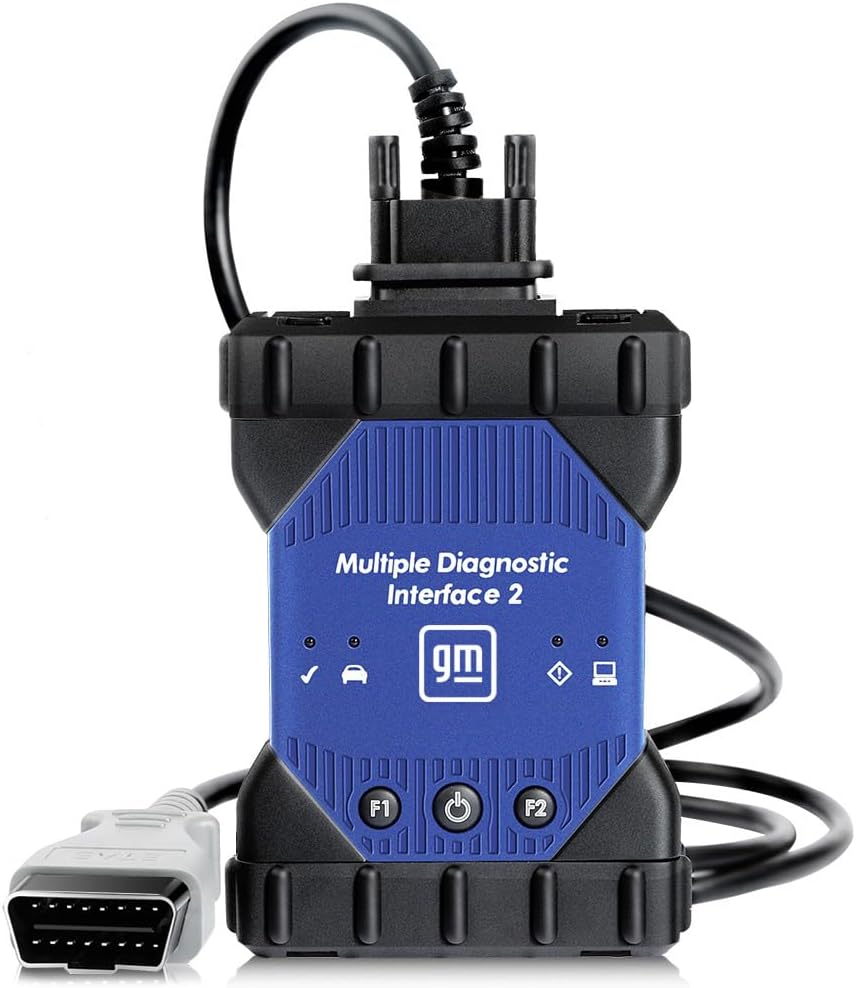

BOSCH EL-52100-AM GM Global Multiple Diagnostic Interface (MDI 2) Kit - Compatible with All 1996 and Newer General Motors Vehicles

The GM MDI 2 is the next generation Global Diagnostic Interface tool for both current and future vehicles starting with Global A vehicles, and extending through future vehicle protocols and architectures. It's a compact communication module with increased processing power and security that manages the transfer of data between a vehicle's onboard ECU network with an auxiliary CAN bus. The GM MDI 2 replaces the MDI introduced in 2007 and offers faster programming speed than the MDI. The MDI 2 can be used to perform Pass-Thru programming on all vehicles built since 1996 and into the future. Servicing the current generation Global A vehicles will require the diagnostic software, GDS2, Global Diagnostic System 2 running on a local PC device while the MDI or MDI 2 is connected to the vehicle. The MDI 2 connects to the vehicle via the J1962 connector using a new DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB) or through a NEW Point-to-Point wireless feature, and the dealership network (CAT5, or Wireless). Kit includes: MDI device, DLC Cable SAE J1962, 10-ft. USB A to USB B Cable, Ethernet Cable, Two pcs. of D-Link Wireless USB Adapters (Dongles) for wireless connection Note: This product requires the GM GDS2 software. Contact GM AC Delco to purchase a subscription. Contact AC Delco at: acdelcotds Help Desk: 1-800-825-5886 prompt #3

Features & Specs

• Automotive Fit Type : Universal Fit
• Operating System : Windows XP
• Power Source : Crank
• Screen Size : 2 Centimeters

Item details

• ASIN : B07HX5QHKV
• Brand Name : Bosch
• Global Trade Identification Number : 00028851029070
• Included Components : device, dlc cable, usb cable, either net cable, d link adapter
• Item Type Name : GM Multiple Diagnostic Interface 2 (MDI 2) Kit
• Manufacturer : Bosch Automotive
• Manufacturer Part Number : EL-52100-AM
• Manufacturer Warranty Description : Refer to Amazon
• Model Number : EL-52100-AM
• UPC : 028851029070
• Unit Count : 1.0 Count
